Metal Jacket Gasket
Model No:JT-G5000
[Original]:Made in China/Ningbo City
[Type]:Whole Sheet Cut/Welder-type
[Key words]: Metal Jacket Gasket/Double Jacket Gasket/Gasket For Heat Ex-changer
[Brief Introduction]:Metal jacket gasket is filled with flexible graphite, ceramic fiber, asbestos and non asbestos board, and wrapped with metal sheets of various materials such as stainless steel, tinplate and red copper. It is especially suitable for high temperature and high Max.Pressure sealing parts such as heat ex-changer and Max.Pressure vessel. It can effectively prevent the scattering of gasket and the erosion of medium, and improve the Max.Pressure resistance at the same time.
[Product application]: it is especially suitable for heat ex-changers, gas pipelines, cast iron flanges, cylinder heads, boilers and other containers. Generally, during installation, the initial thickness of the gasket can be pressed with 30% deformation, which can effectively seal the unevenness and small defects of the flange. It can be suitable for various media by selecting different metals and filling materials.
|
|
|
|
|
Optional materials:
Metallic materials | German standard | Hardness HB | Temperature (C°) | Density g / cm3 |
Carbon steel, tinplate | 1.1003/1.0038 | 90~120 | -60~500 | 7.85 |
SS304, SS304L | 1.4301/1.4306 | 130~180 | -250~550 | 7.9 |
SS316, SS316L | 1.4401/1.4404 | 130~180 | -250~550 | 7.9 |
Copper | 2.0090 | 50~80 | -250~400 | 8.9 |
Aluminium | 3.0255 | 20~30 | -250~300 | 2.73 |
Core material:
Flexible graphite, asbestos sheet, non asbestos sheet; ceramic fiber, mica board, high-strength board, etc. Please consult our company for details.
[Available Specifications]: DN10-3000mm;Thickness: 2 ~ 8mm
[Standards]: ASME B 16.20, JIS, EN, DIN etc. Drawing can make
Below types we can provide:
JT-G4000 | Metal Flat Gasket |
JT-G5000 | Metal Jacket Gasket |
JT-G5100 | Heat-Exchange Gasket |
JT-G5200 | Cooper Jacket Gasket |
JT-G5300 | Metal O Ring |
JT-G5400 | Copper O Ring |

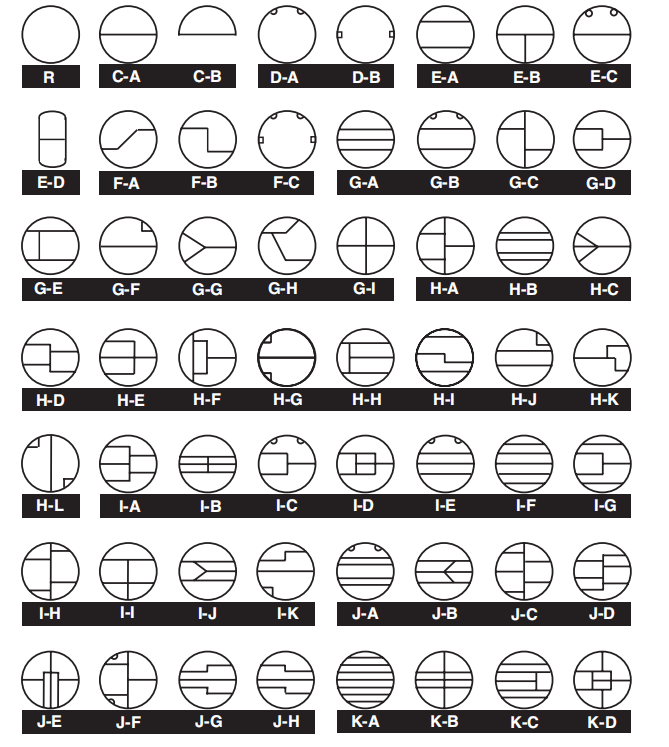

Heat exchange type for option:
*Note: Detail data please load our catalog in PDF,all data for take reference.Subject to the actual situation.All interpretation rights belong to our factory.
