Pipe Flange Insulation Kit/Type E

Model No: JT-K01

[Original]:Made in China/Shanghai City

[Key words]: Pipe Flange Insulation Set

[Composite]:Gasket +Sealing Part+Sleeve+Insulation washer

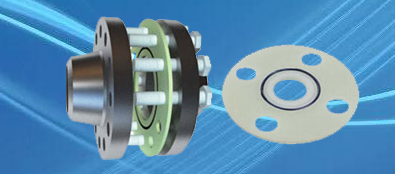

Brief Introduction:Type E is a full flat gasket (equipped with FF type), which has the same outer diameter and bolt hole as the flange. This design facilitates the correct alignment of the gasket during installation.

Order Material For e.g,: PH+MYLAR+PH+ZPS

G10+SEP+G10+G10+ZPS

G10+PTFE+G10+G10+ZPS

RPTFE+G10+G10+ZPS

For High Max.Pressure type: G10+316L+SEP+G10+G10+ZPS

[Package]: One set per paper box

[Standards]: ASME B 16.20, JIS, EN, DIN etc. Drawing can make

Below types we can provide:

*Note: Detail data please load our catalog in PDF,all data for take reference.Subject to the actual situation.All interpretation rights belong to our factory.
