Pipe Flange Insulation Kit/Type E
Model No: JT-K02
Original:Made in China/Shanghai City
[Key words]: Pipe Flange Insulation Set
[Composite]:Gasket +Sealing Part+Sleeve+Insulation washer
[Brief Introduction]:Type F insulating gasket is applicable to convex flange (equipped with RF type). The outer diameter of the insulating gasket of this insulating group is the same as that of the flange, and there are accurate bolt holes.
Order Material For e.g,: PH+MYLAR+PH+ZPS
G10+SEP+G10+G10+ZPS
G10+PTFE+G10+G10+ZPS
RPTFE+G10+G10+ZPS
For High Max.Pressure type: G10+316L+SEP+G10+G10+ZPS
[Package]: One set per paper box
[Standards]:ASME B 16.20, JIS, EN, DIN etc. Drawing can make
Below types we can provide:
JT-K01 |

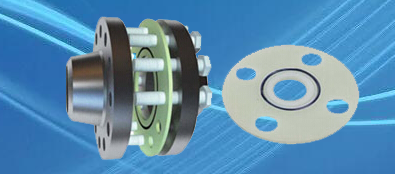

| Pipe Flange Insulation Kit ---Type E |
JT-K02 |

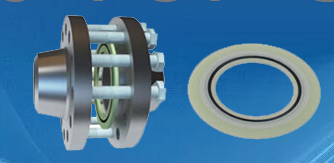

| Pipe Flange Insulation Kit ---Type F |
JT-K03 |
| Pipe Flange Insulation Kit ---Type D |
*Note: Detail data please load our catalog in PDF,all data for take reference.Subject to the actual situation.All interpretation rights belong to our factory.
